cactiをインストールする。
mysqlも入ってなかったので一緒にインストール
yum install cacti yum install mysql-server service mysqld start
mysqlを設定する
rootユーザを設定したのちrootでログインし、
データベースcactiを作成している。
# /usr/bin/mysqladmin -u root password 'password' # mysql -u root -p Enter password: Welcome to the MySQL monitor. Commands end with ; or \g. Your MySQL connection id is 3 Server version: 5.1.73 Source distribution Copyright (c) 2000, 2013, Oracle and/or its affiliates. All rights reserved. Oracle is a registered trademark of Oracle Corporation and/or its affiliates. Other names may be trademarks of their respective owners. Type 'help;' or '\h' for help. Type '\c' to clear the current input statement. mysql> create database cacti -> ; Query OK, 1 row affected (0.00 sec) mysql> grant all privileges on cacti.* to cactiuser@localhost identified by 'cactiuser'; Query OK, 0 rows affected (0.00 sec) mysql> exit
用意されている初期データの流し込み。初期データ流し込み用sql場所はバージョンによって変わるらしいが、
今回はcronで指定されるpoller.phpと同じ場所にあった。
# mysql -u cactiuser -p cacti < /var/www/cacti/cacti.sql Enter password:
cactiのクーロンを確認。
この/var/www/cacti配下に他の設定ファイルもあった。
今回コメントアウトされていなかったが、されていた場合はコメントアウトを外す。
# cat /etc/cron.d/cacti */5 * * * * cacti php /var/www/cacti/poller.php &>/dev/null
apacheのエラーログにタイムゾーンのエラーが出るのを抑止するためphpの設定変更。
# vi /etc/php.in date.timezone = 'Asia/Tokyo'
apache起動
service httpd start
ブラウザで以下にアクセスする
http://<インストールしたサーバのIPアドレス>/cacti/
Next⇒New Installを選択しNext⇒全てFOUNDになっていることを確認しNext

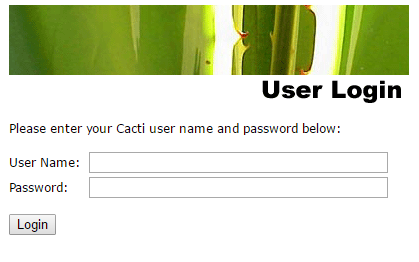

するとログイン画面が出てくるので、ログインする。
初期ユーザ名、パスワードはadmin,admin
これで使い始められる状態になりました。
以上でインストールは完了です。
次はcactiにログインし監視したい対象を登録します。
